ECO SUEZ I

A Journey on Sustainable Waters

Enhancing the Suez Canal's operations

Antipollution Egypt aims to enhance the Suez Canal’s operations by providing innovative Port Reception Facilities (PRF) for solid and liquid waste collection from vessels. This initiative promotes a circular economy, focusing on waste valorization to deliver social, economic, and environmental benefits. A key highlight is the introduction of ECO SUEZ I, the first vessel dedicated to sustainable PRF, which will support the project’s ZERO WASTE strategy and maintain a ZERO-CARBON footprint from day one.

  • Efficient Hull Design
  • Low Emissions Main Engines
  • Eco-Friendly Paints and Antifouling

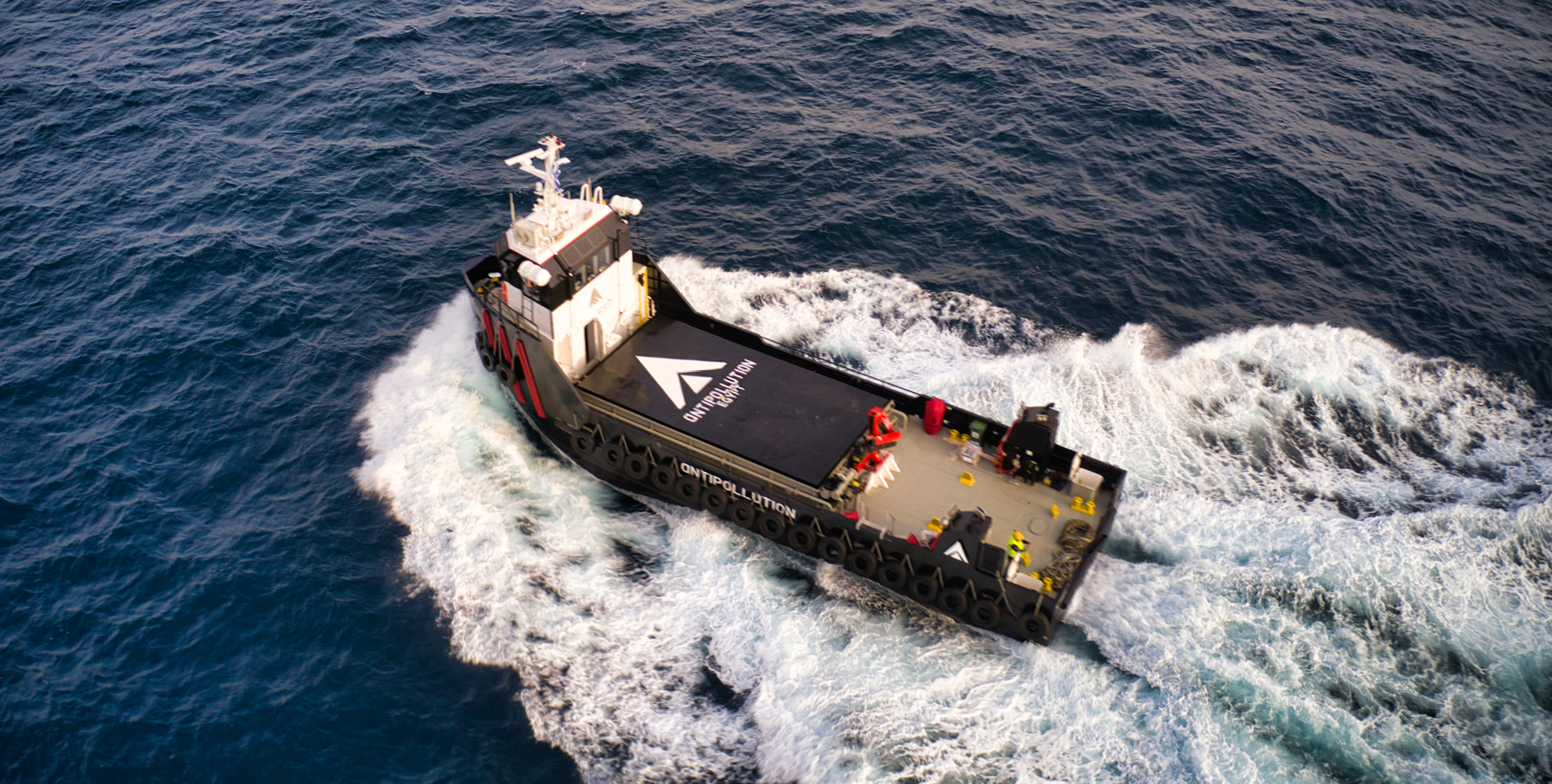

top

Supporting Sustainable Development Goals (SDGs)

ECOSUEZ I is aligned with several of the United Nations Sustainable Development Goals (SDGs), demonstrating its commitment to a sustainable future:

Goal 14: Life Below Water
Conservation and Restoration

Goal 12: Responsible Consumption and Production
Sustainable Practices

Goal 13: Climate Action
Reducing Carbon Footprint

Goal 17: Partnerships for the Goals
Collaboration for a Cleaner Future: ECOSUEZ I supports partnerships with organizations, ports, and local communities

Goal 14: Life Below Water
Conservation and Restoration

Goal 12: Responsible Consumption and Production
Sustainable Practices

Goal 13: Climate Action
Reducing Carbon Footprint

Goal 17: Partnerships for the Goals
Collaboration for a Cleaner Future: ECOSUEZ I supports partnerships with organizations, ports, and local communities

Vision

At ECO SUEZ I, we envision a future where maritime operations and environmental protection go hand-in-hand. As a purpose-built eco-vessel, ECO SUEZ I, is dedicated to preserving Suez Canal by combining top-tier Port Reception Facilities (PRF) with cutting-edge anti-pollution services. Our goal is to set a new standard for sustainability in maritime operations, creating a cleaner, healthier marine environment for generations to come.

Mission

Our mission is to deliver unmatched efficiency in sustainable Port Reception Facilities (PRF) through ECO SUEZ I, designed to be a powerful partner for ports, marinas and coastal facilities, offering world-class services that minimize environmental impact while maximizing operational reliability. By leveraging the latest in maritime technology, ECO SUEZ I, is committed to protecting marine ecosystems through swift, effective, and eco-conscious operations.

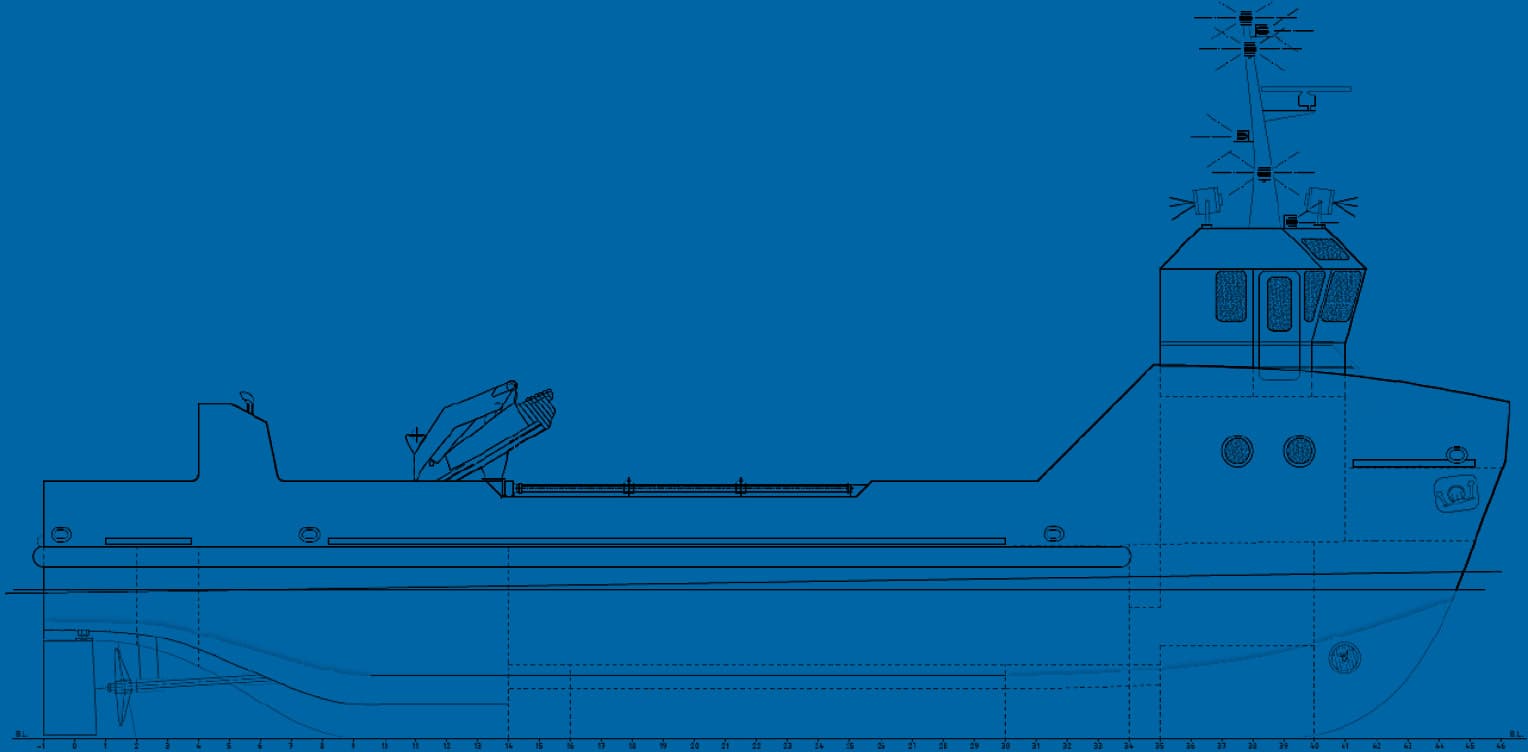

photo 3b 1

Specifications

IACS Class B.V approved

DIMENSIONS
  • Length Overall (L.O.A.): 23.900 m
  • Breadth: 6.600 m
  • Depth (Moulded): 3.100 m
  • Designed Draught: 2.860 m
  • Design Speed: Approx. 13 knots
  • Accommodation: Up to 4 6 personnel

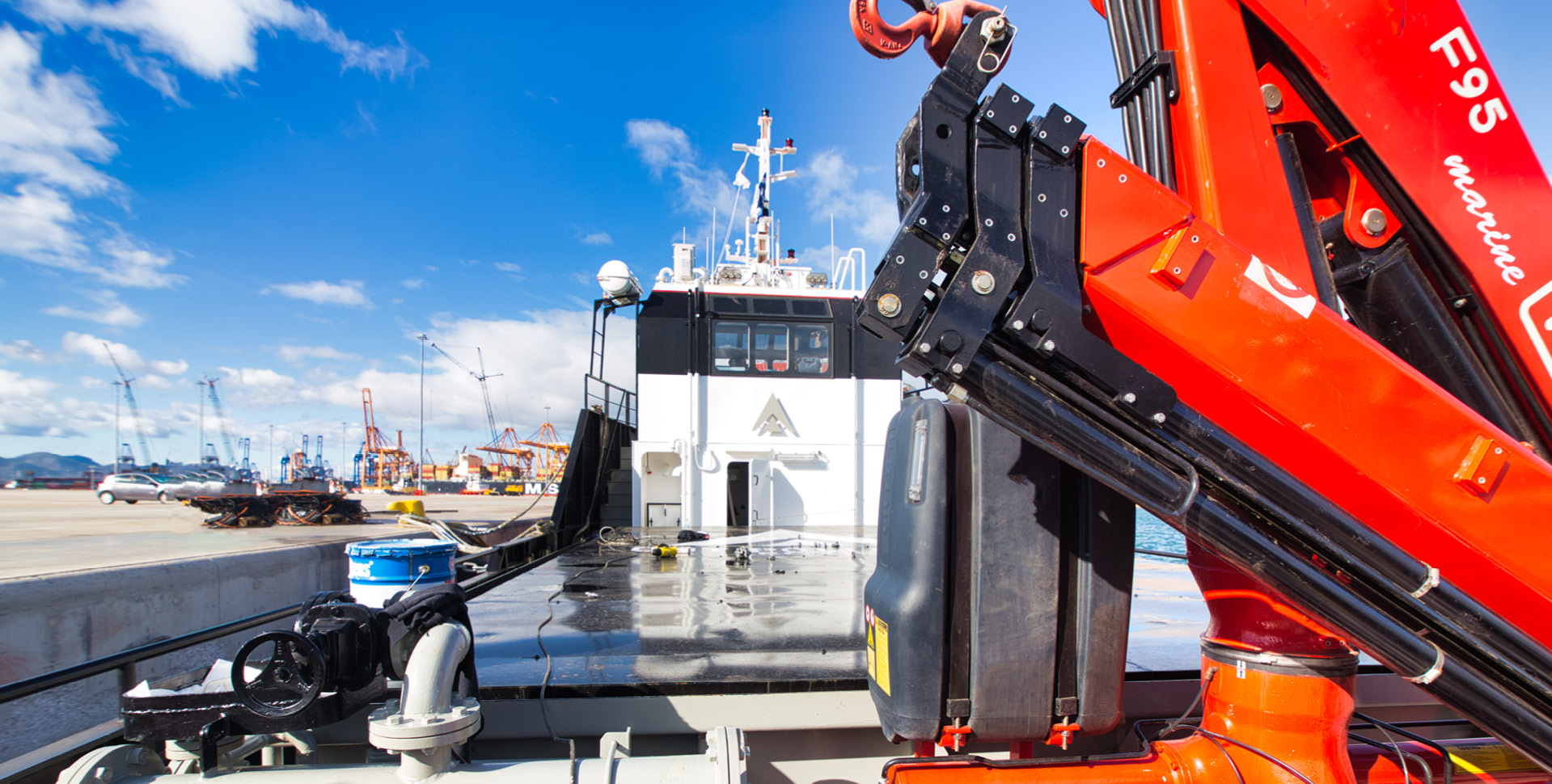

bottom 2

Operational Capabilities / Pollution Response Facility Services

ECO SUEZ I is designed to provide advanced waste reception services, supporting sustainable port operations with a focus on environmental protection.

  • Total Cargo Hold Capacity: 122 cubic meters

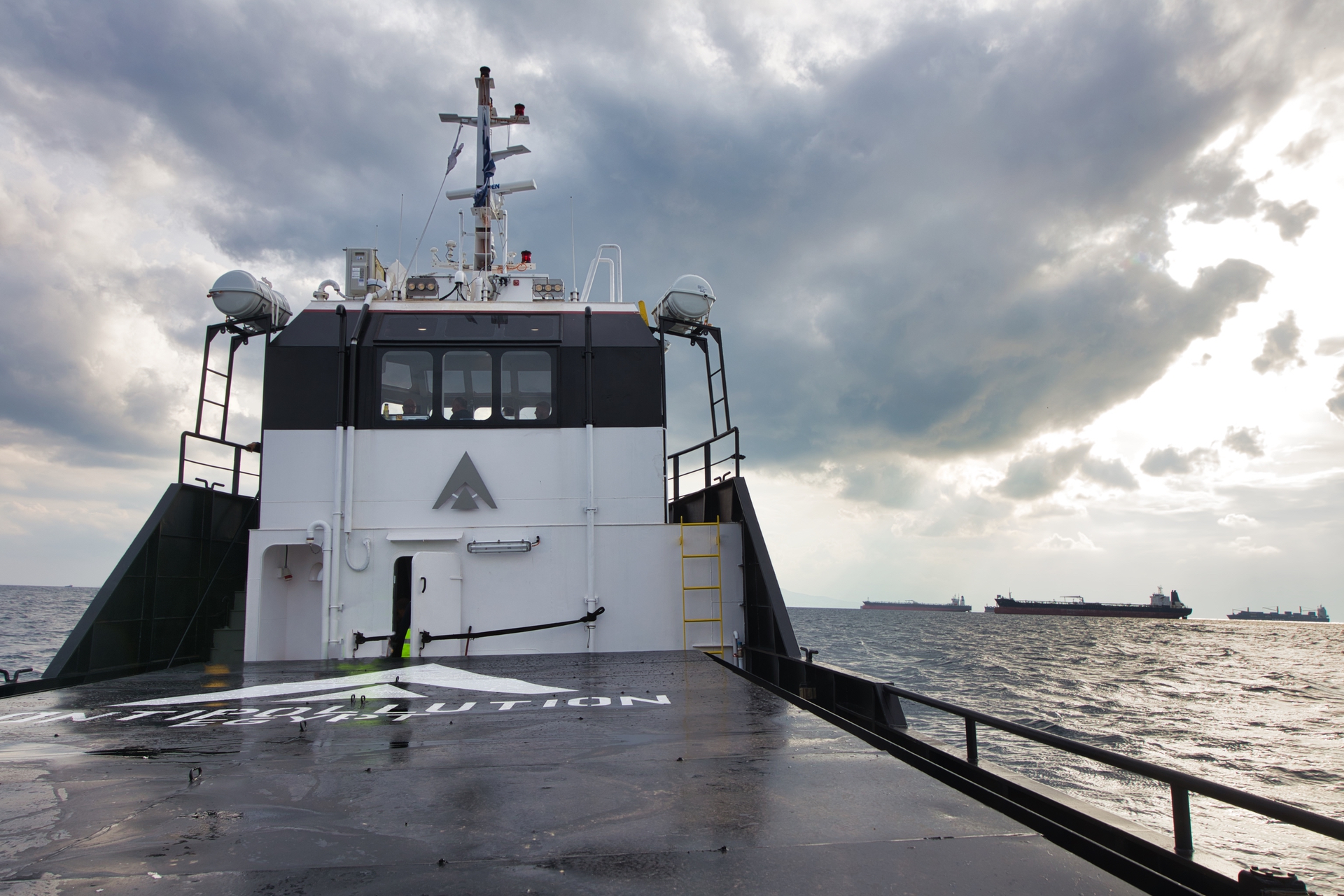

  • Aft Open Deck: 40 square meters

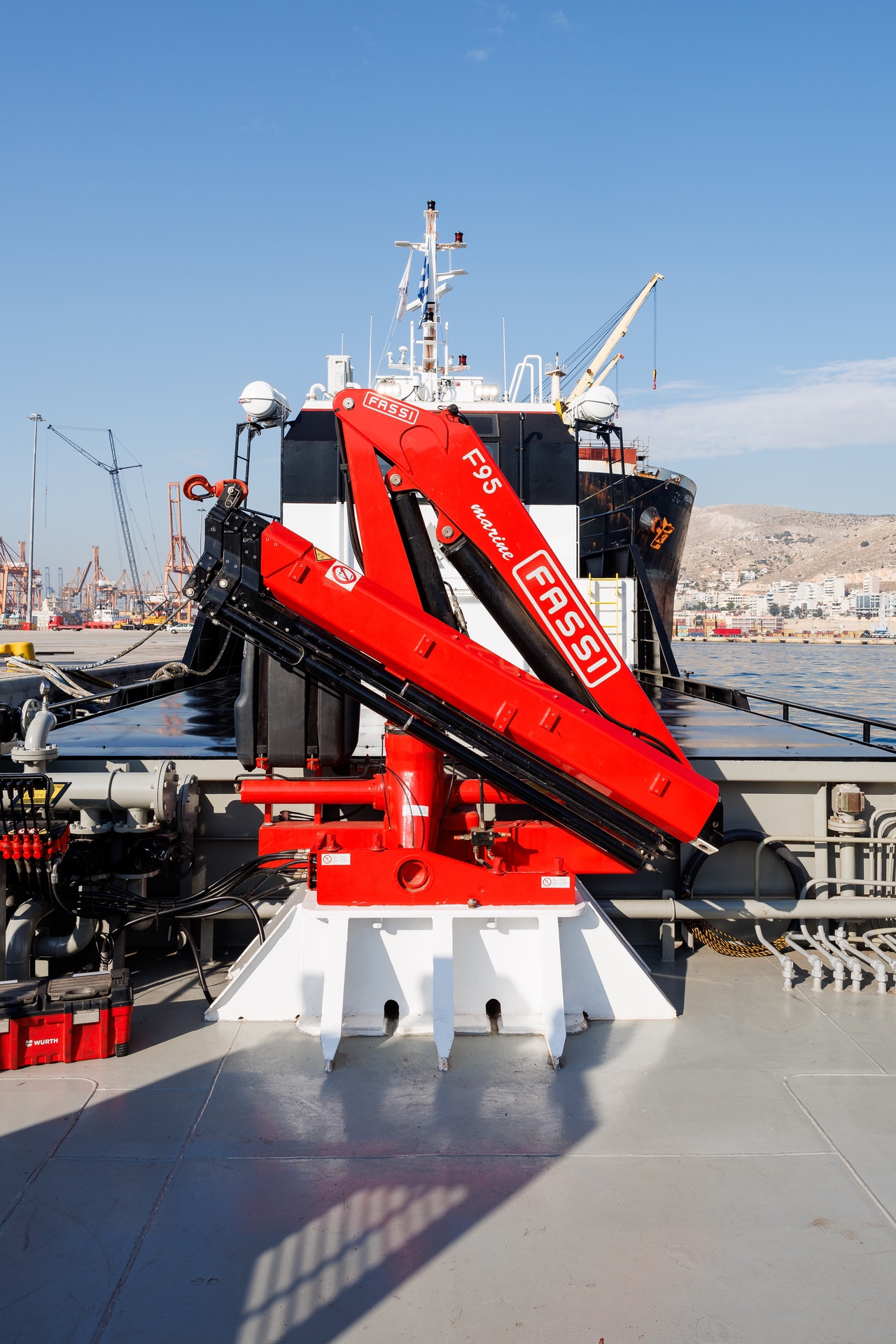

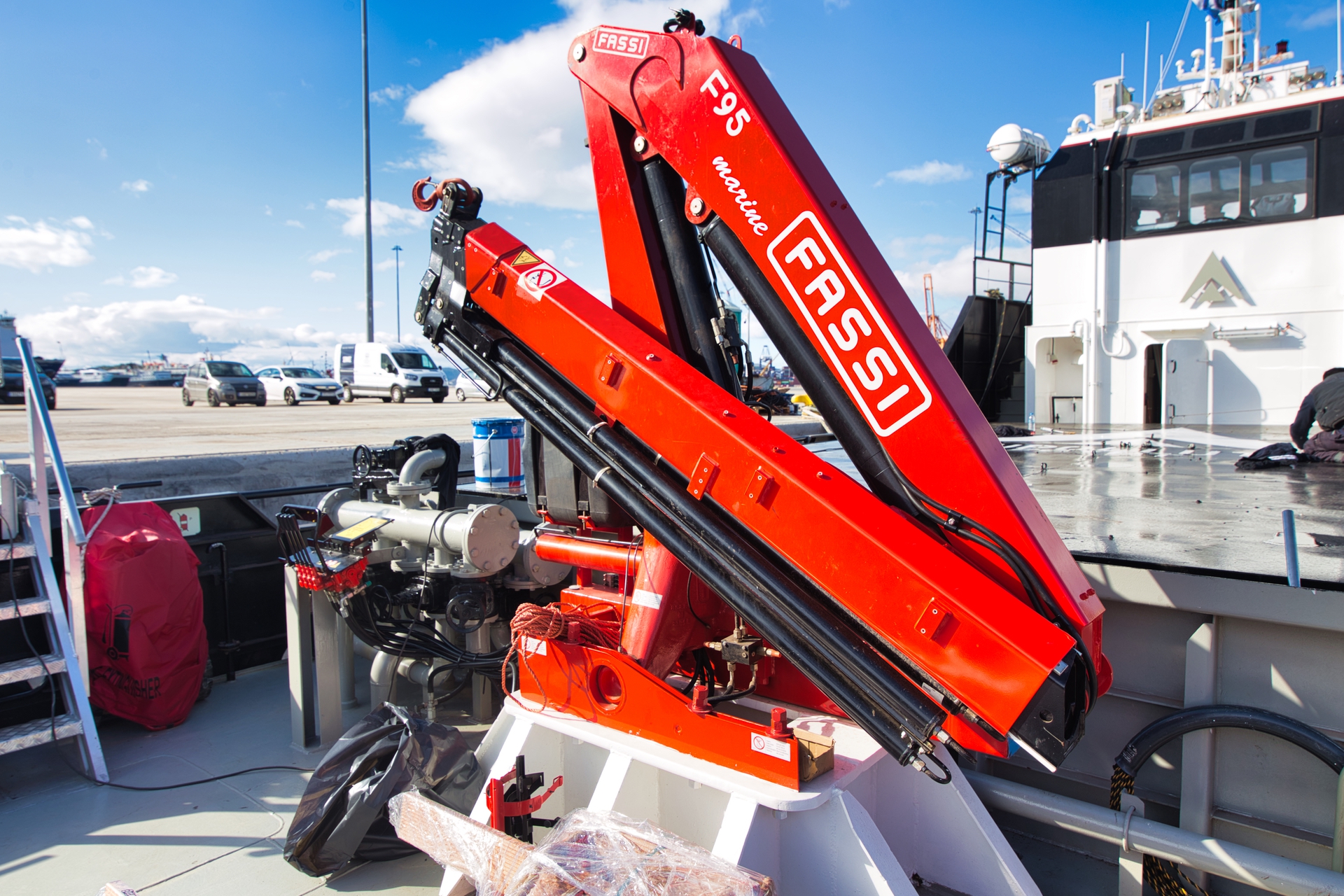

  • Crane: 4.2-ton (2-meter) Fassi crane
  • Oil Skimmer: Side-mounted oleophilic brush chain-type skimmer with double rotation direction capability, ideal for light to heavy viscous oils
  • Jib Arm: 5-meter arm with a sweeping area of 20 cubic meters
  • Oil Recovery Efficiency: Over 98%, minimizing environmental impact

Engineering Excellence

Volvo Penta Twin D16 MH Inboard Engine

ECO SUEZ I is powered by a high-performance twin D16 MH inboard engine In-line 6, 4-stroke, direct-injected, turbocharged diesel engine with charge air cooler, emission compliance EU IWW, IMO NOx Tier I1, EPA Tier 3, CCNR Stage 2, China l, China Il, ensuring both power and eco-efficiency

  • VETUS Bow Thruster screw and pump with Low noise level thanks to cast-iron housing. SAE-C connection flange, drive shaft with 14-tooth spline.
  • John Deere Engine Generator In-line, 4- Cycle, 57KW
  • Combined Crankshaft Power: 1200 hp
  • Commercial Duty: Continuous

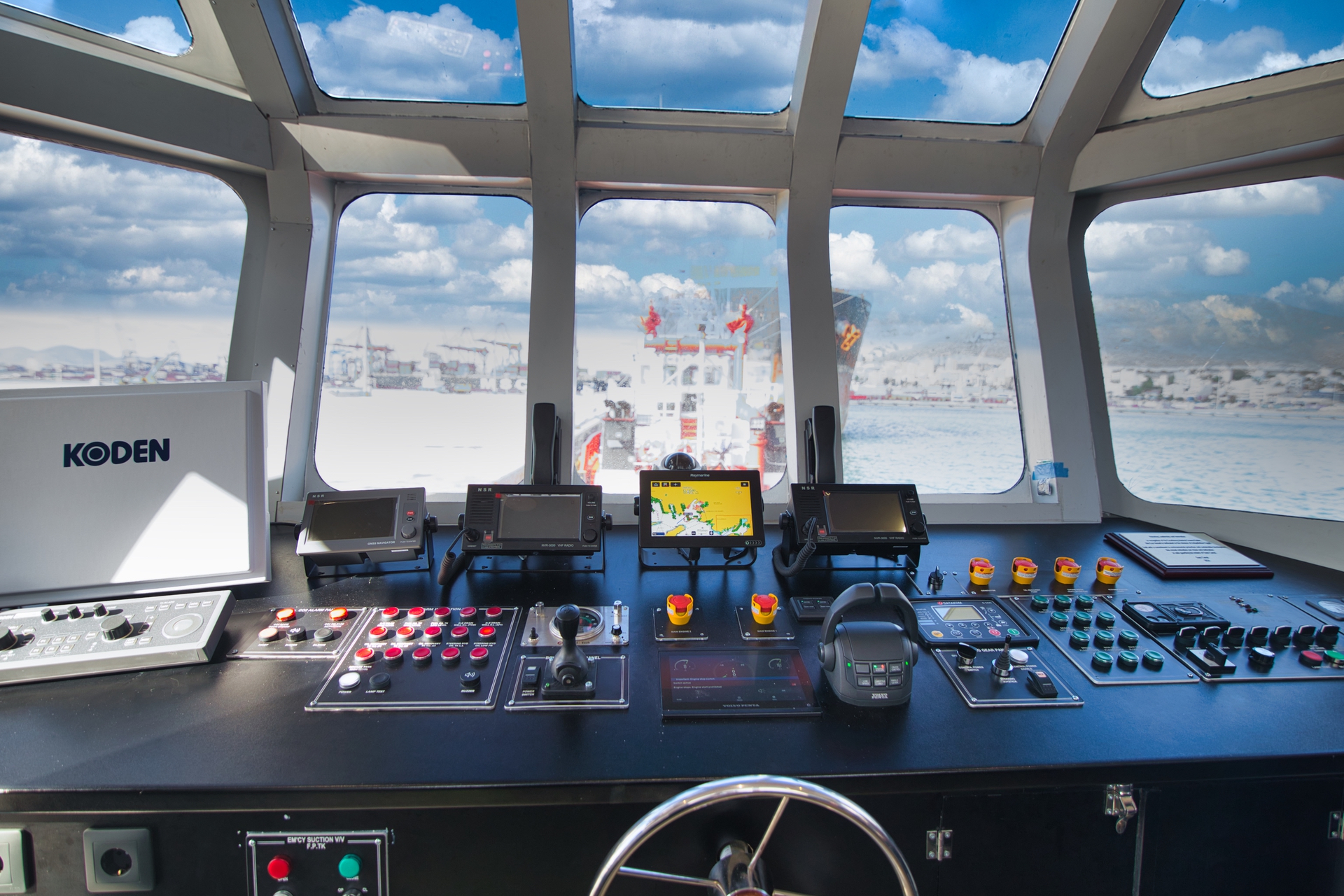

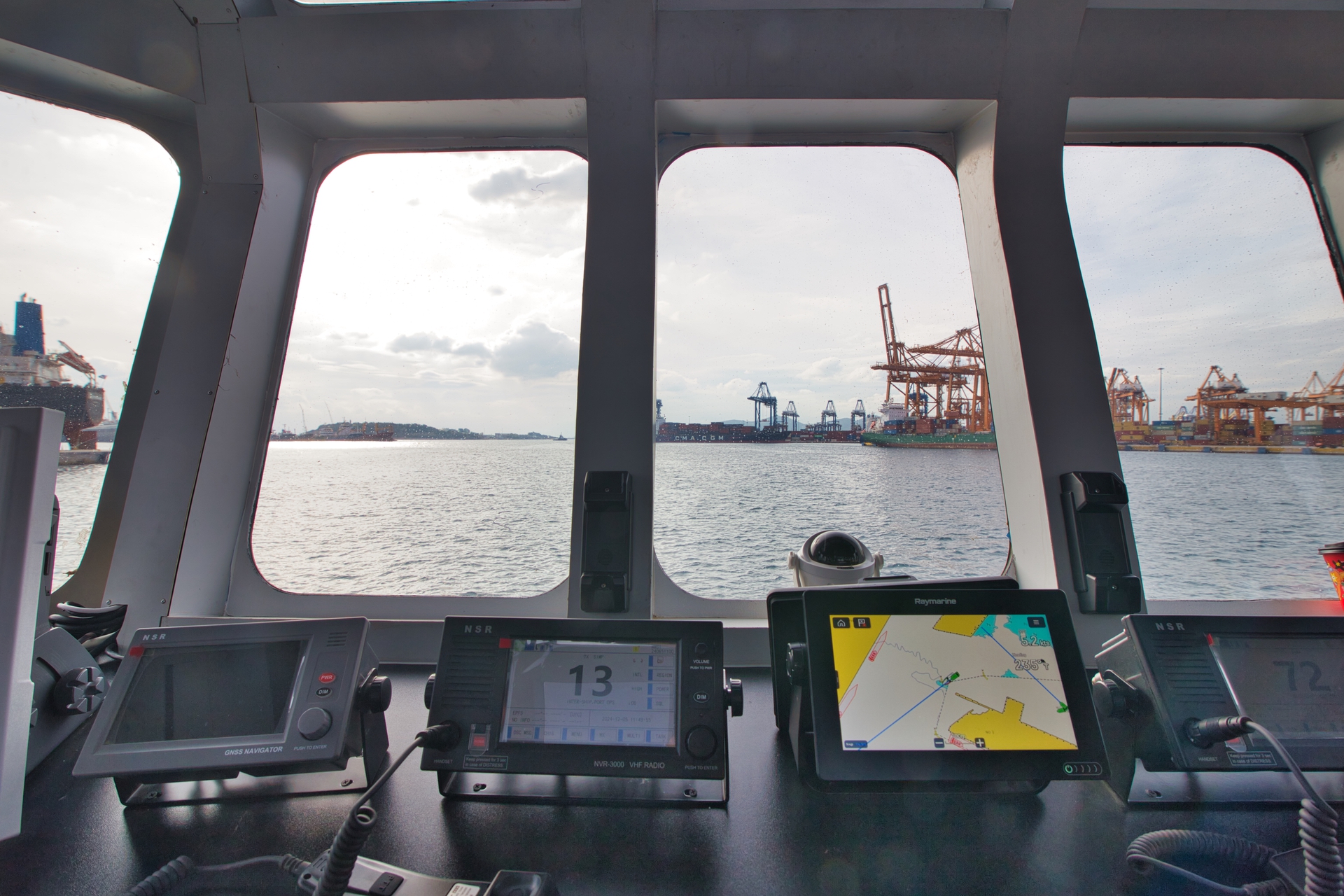

  • Electronic Vessel Control: Full instrumentation with advanced fuel management systems
  • Fuel Efficiency & Low Emissions: Equipped with electronically controlled unit injectors, ECO SUEZ I meets the highest standards of fuel efficiency and emission control.

By installing low emission engines and collaborating with a technical office to implement efficient design principles, in addition all the waste management procedures have been studied and implemented to eliminate any pollution risks. These efforts ensure that our vessel minimizes harmful emissions while maximizing fuel efficiency, contributing to a greener maritime industry.

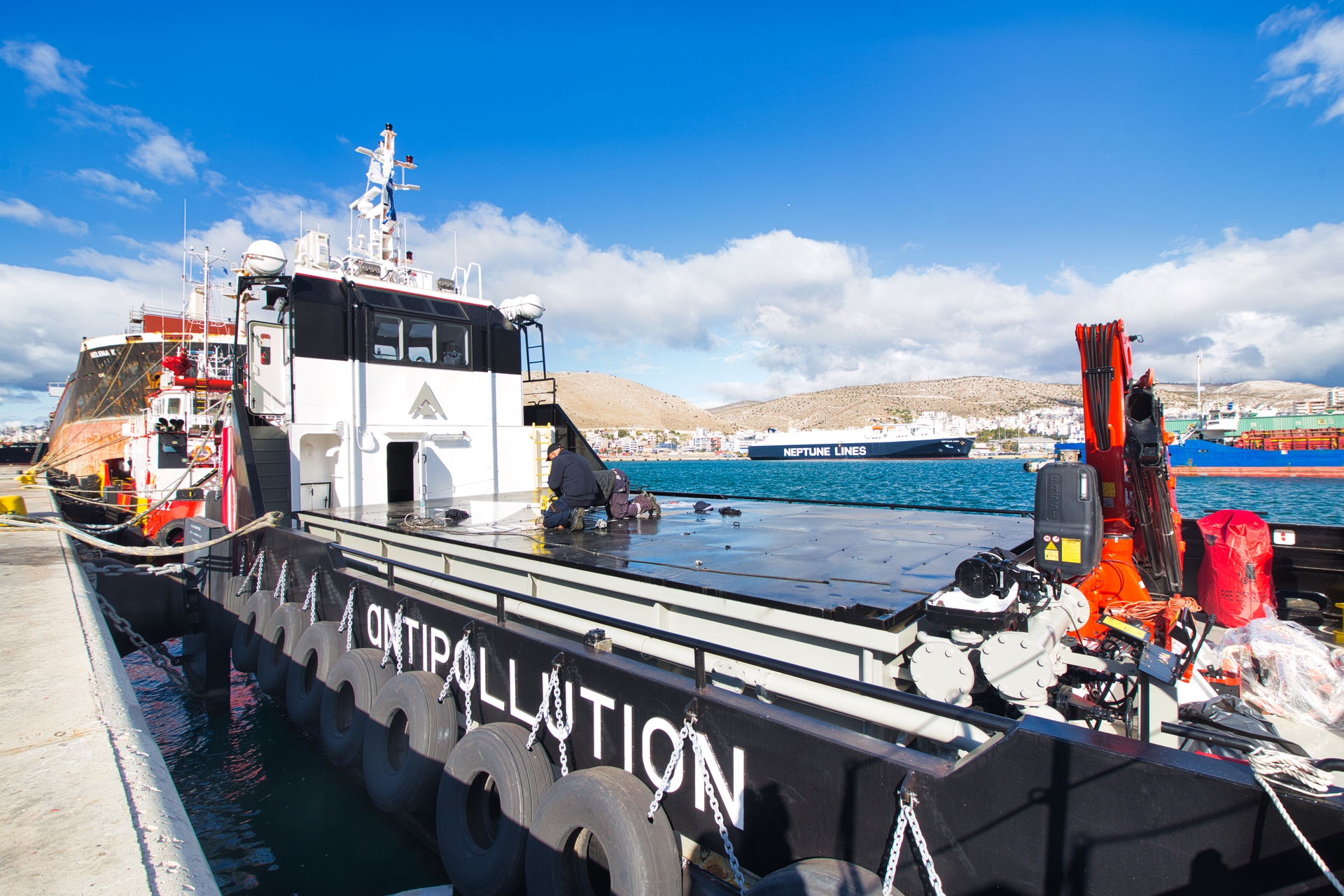

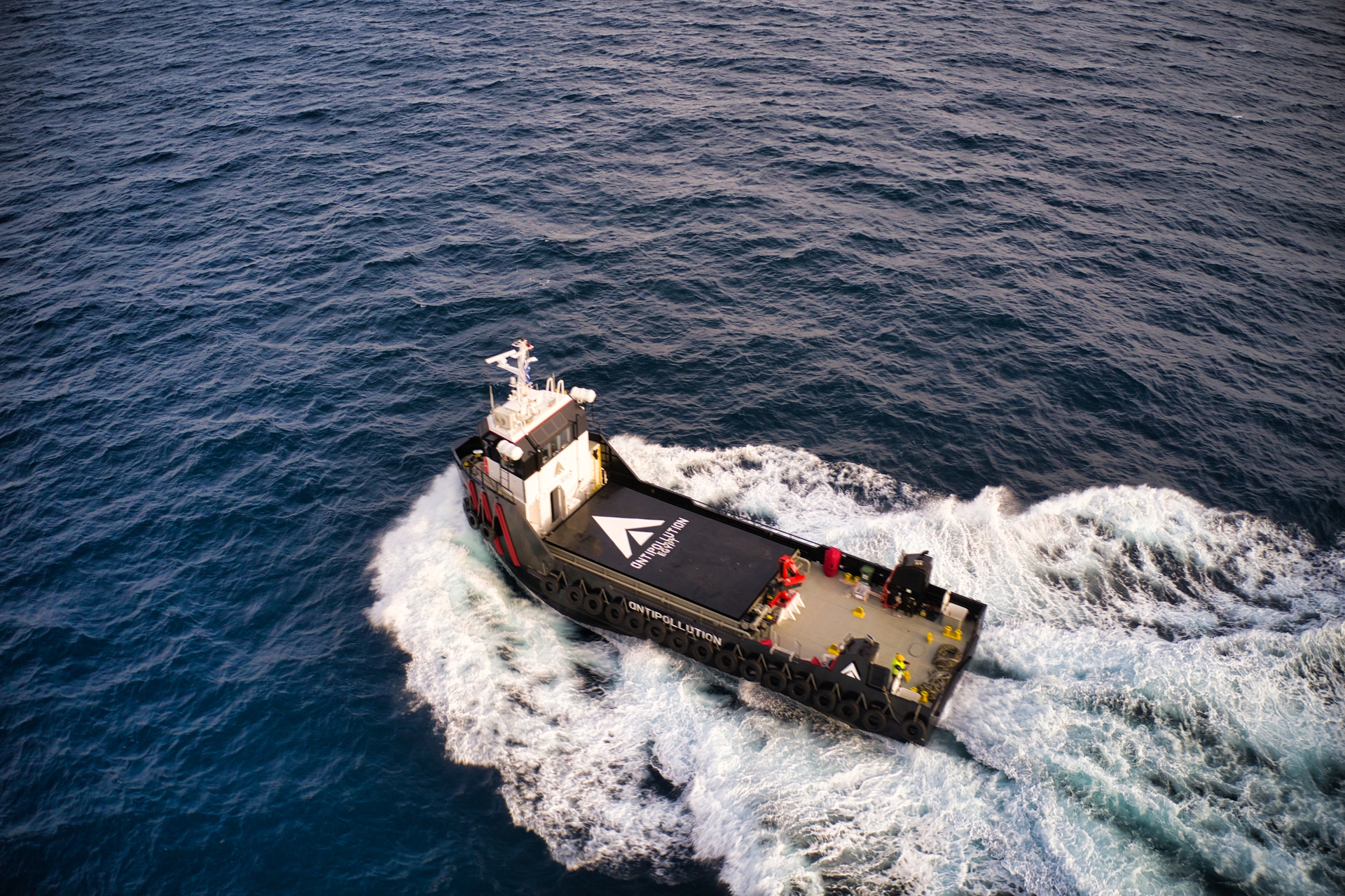

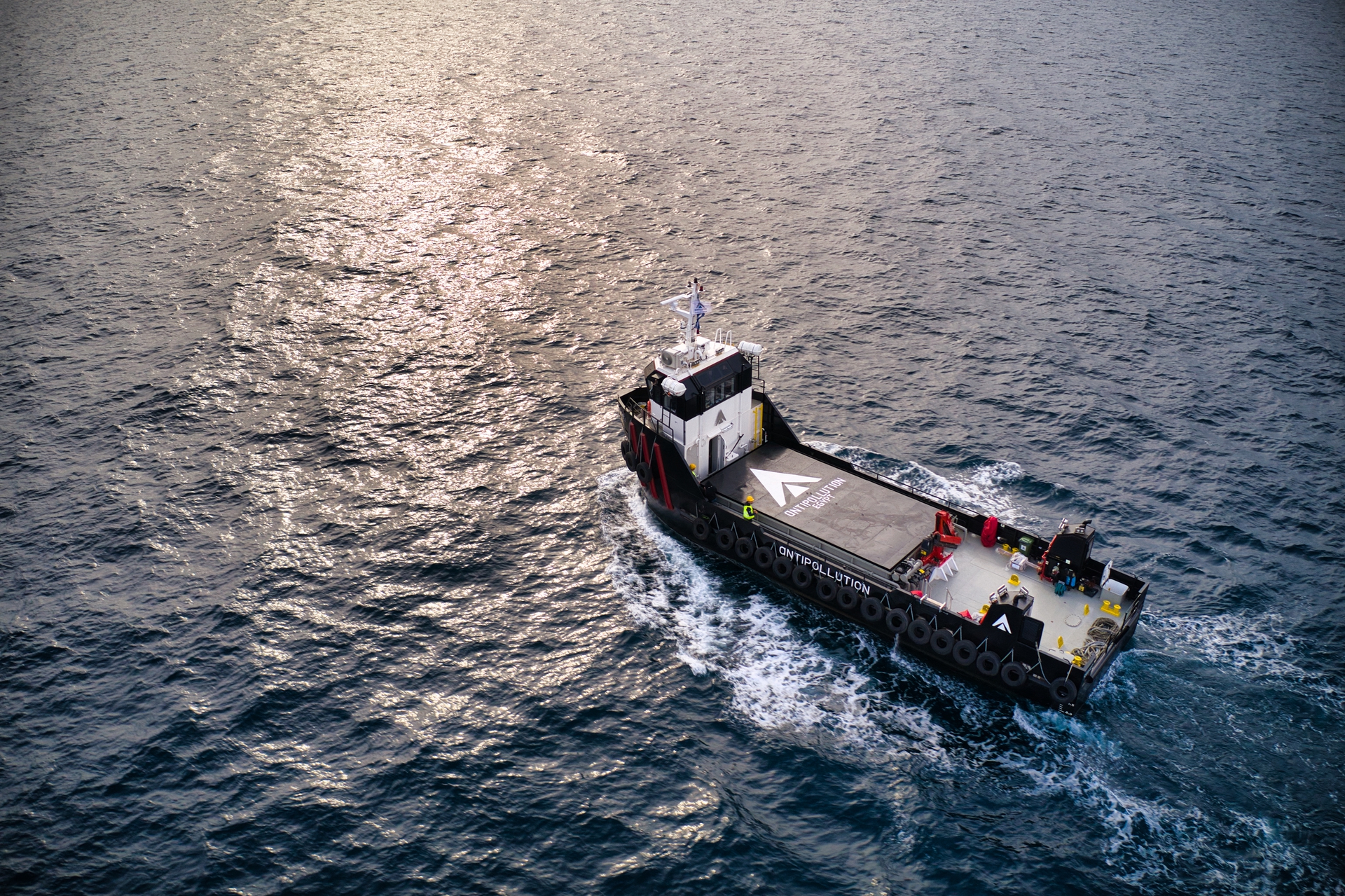

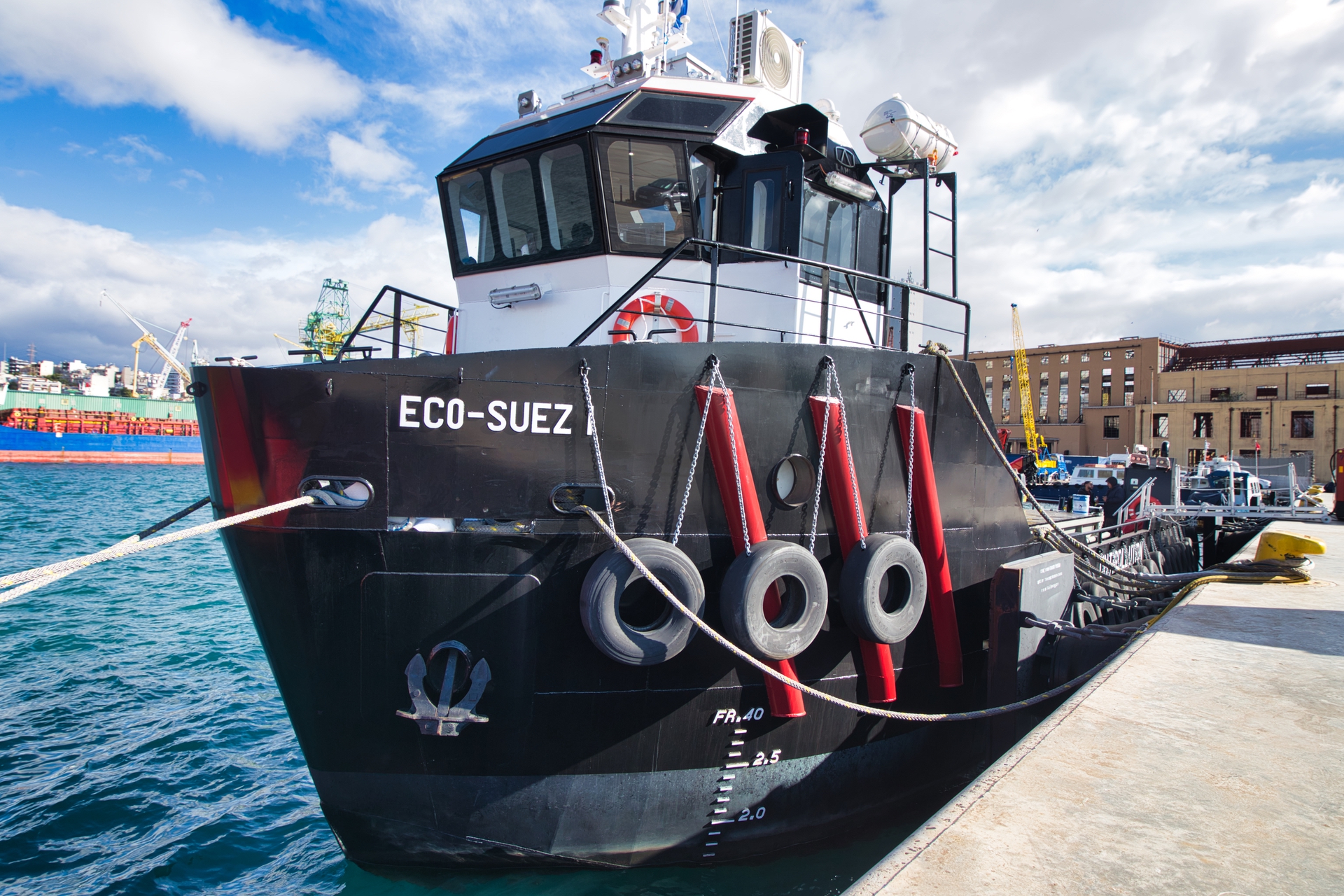

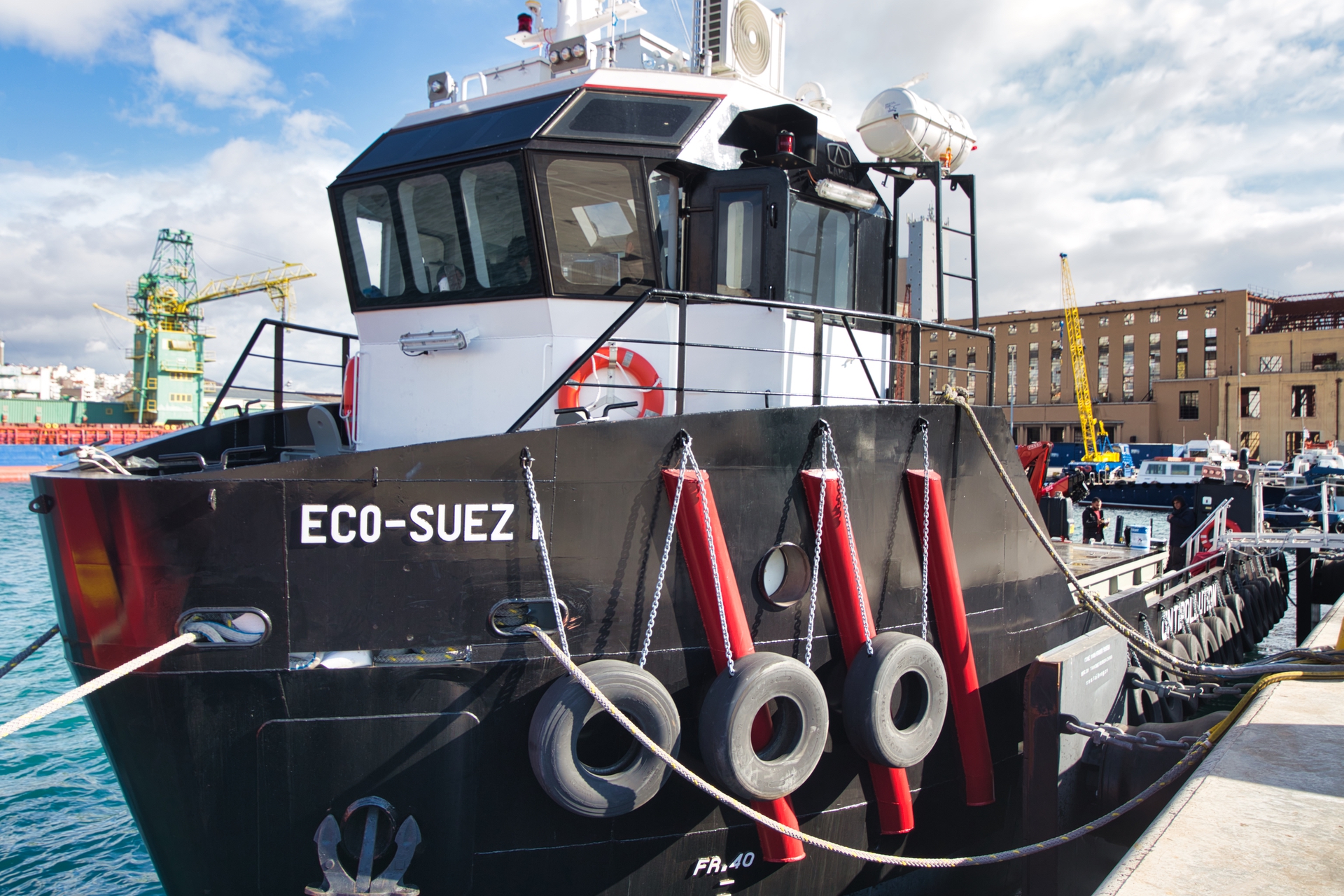

Gallery
